High Performance 240 VAC Miniature Slip Ring Transmitting Signals For Consumer Electronics
Description of M125 Capsule Slip Ring
The SenRing M125 series is a 360-degree rotating conductive cap slip ring that is designed specifically for small consumer electronics. With an outer diameter of 12.5mm, it has a length option ranging from 13.5mm to 23.5mm. The M125 series cap slip ring features gold-gold contact points for superior stability and long service life.
The rotating end wire and the static end wire are color-coded with 24 different colors, making wiring operations more convenient. The conductive ring is designed with a 90-degree V-groove, which provides a larger contact surface area, smoother rotation, lower torque, and lower dynamic resistance.
Features of M125 Capsule Slip Ring
1. The slip ring has an outer diameter of 12.5mm and a length option ranging from 13.5mm to 23.5mm.
2. The standard model has an IP51 protection rating and supports 2-18 channels with each channel having a current capacity of 2A, and other current sizes can be customized.
3. The torque is very low, not exceeding 0.06N.m. It is a standardized product and has readily available stock.
4. The integrated structure design makes it easy to install.
This innovative cap slip ring is ideal for small consumer electronics such as drones, cameras, and other portable devices. Its compact size, high stability, and long service life make it a reliable and efficient solution for all your rotating conductive needs.
Technical Specification of M125 Capsule Slip Ring
| Working Life | 10millions for ref(depends on working conditions) |
| Rotating speed | 250RPM |
| Working Temp. | -30°C~80°C |
| Work Humidity | 0~85% RH |
| Contact Material | precious metal:gold-gold |
| Housing Material | engineered plastic |
| Torque | 0.05N.m+0.01N.m/6 wire |
| IP Grade | IP51 |
| Spec. | Power | Signal |
| Voltage Range | 0~240VAC/VDC | 0~240VAC/VDC |
| Insolution Resistance | ≥200MΩ/300VDC | ≥200MΩ/300VDC |
| Lead wire Spec. | refer to model list | refer to model list |
| lead wire length | standard length 150mm(can be customized) |
| Dielectric Strength | 300VAC@50Hz,60s |
| Electrical Noise | < 0.01Ω |
| IP Grade | IP51 |

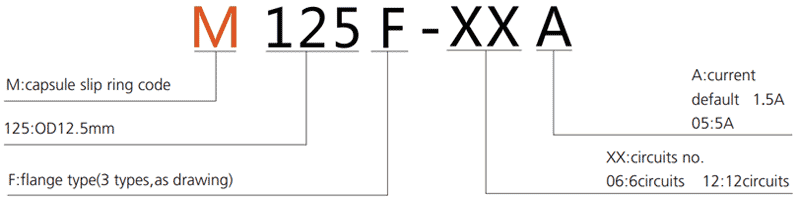

Part no. description

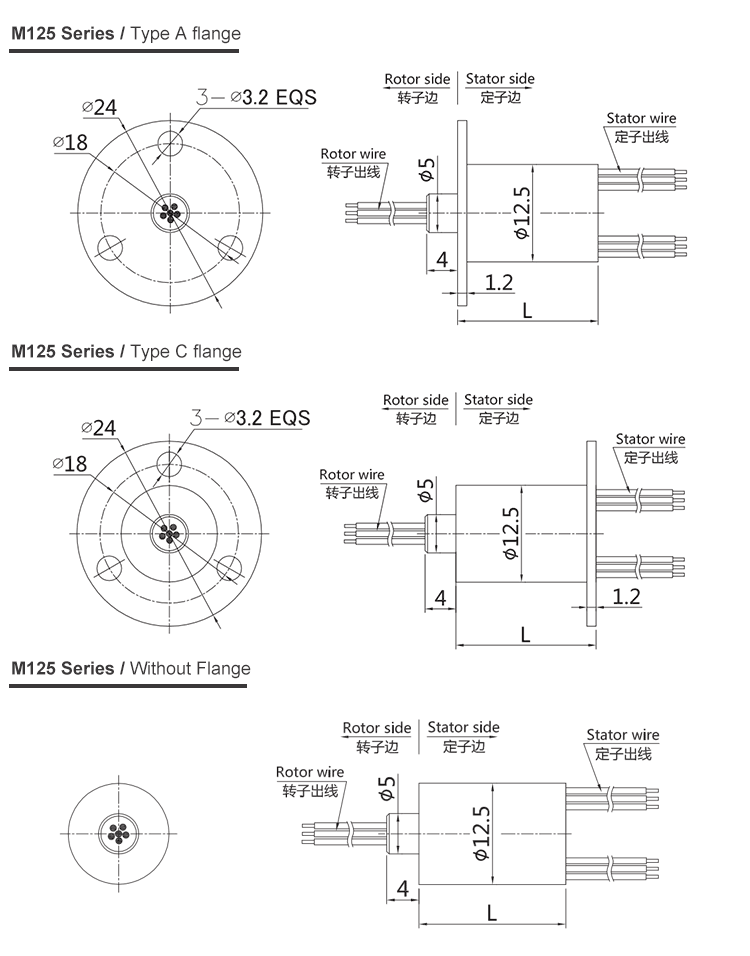

Drawing
Standard model list
| M125-06 | 6 | 1.5A | Silver-plated teflon AWG30# | 13.5 |
| M125-12 | 12 | 1.5A | Silver-plated teflon AWG30# | 18.2 |
| M125-18 | 18 | 1.5A | Silver-plated teflon AWG30# | 23.5 |
| M125-0205 | 2 | 5A | Silver-plated teflon AWG22# | 13.5 |
| M125-0305 | 3 | 5A | Silver-plated teflon AWG22# | 18.2 |
| M125-0405 | 4 | 5A | Silver-plated teflon AWG22# | 18.2 |
